Strong force spinning machine

Has two levels of spinning technologies of primary spin and precision spin, the spinning work pieces are stable and reliable. Can be spinning varieties of different wheel spokes and Aluminum Wheel, by changing spinning mould. The press with advanced structure and high performance, reach the international advanced level.

The press with advanced structure and high performance, reach the international advanced level.

Send Email:

jinghua@jhimt.com

Products DETAILS

Strong force spinning machine

YDMC spinning machine

Product Features:
     Has two levels of spinning technologies of primary spin and precision spin, the spinning work pieces are stable and reliable.
     Can be spinning varieties of different steel wheel spokes / discs; and also suitable for Aluminum Wheels spinning, by changing spinning moulds.
     The press with advanced structure and high performance, reach the international advanced level.

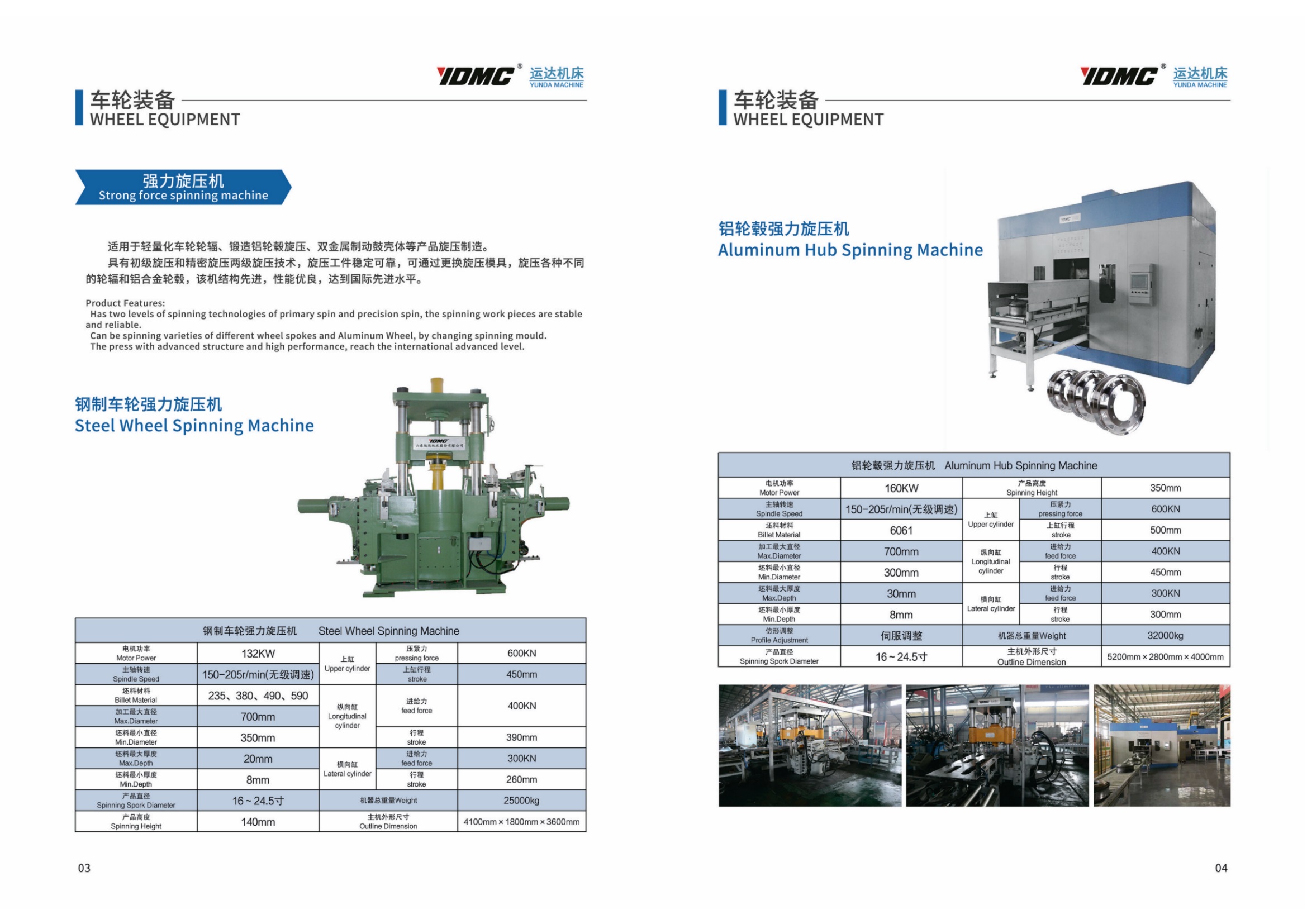

       Steel Wheel Strong Force Spinning Machine
Motor Power 132KW Upper cylinder pressing force 600KN
Spindle Speed 150-205r/min (stepless)  stroke 450mm
Billet Material 235、380、490、590 Longitudinal cylinder feed force 400KN
Max. Machining Diameter 700mm
Min. disc parts Diameter 350mm stroke 390mm
Max. disc Thickness/Depth 20mm Lateral cylinder feed force 300KN
Min. disc Thickness/Depth 8mm stroke 260mm
Spinning Disc/Spoke Diameter 16～24.5 inch N.Weight about 25000kg
Spinning Height 140mm Overall Dimension (about) 4100mm×1800mm×3600mm

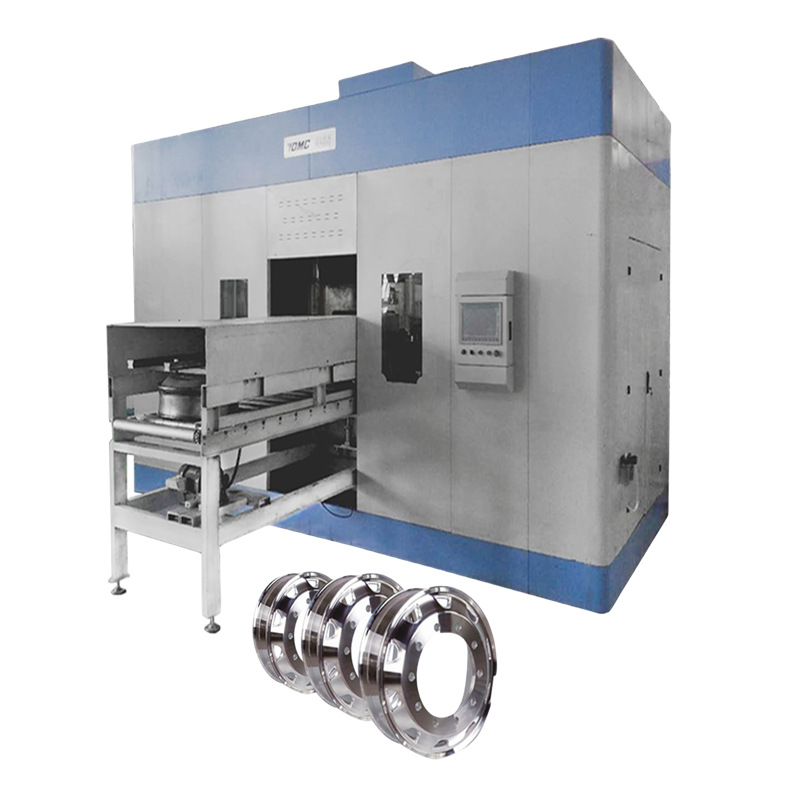

  Aluminum Hub Strong Force Spinning Machine
Motor Power 160KW Spinning Height 350mm
Spindle Speed 150-205r/min (stepless) Upper cylinder pressing force 600KN
Billet Materials 6061  stroke 500mm
Max. Machining Diameter 700mm Longitudinal cylinder feed force 400KN
Min. Disc/spoke Diameter 300mm stroke 450mm
Max. Disc/spoke Thickness/Depth 30mm Lateral cylinder feed force 300KN
Min.Disc/spoke Thickness/Depth 8mm stroke 300mm
Profile Adjustment Servo control N. Weight about 32000kg
Spinning Disc/Spoke Diameter 16～24.5 inch Overall Dimension (about) 5200mm×2800mm×4000mm
    CNC/NC contrlled Strong Force Spinning Machine
Spindle torque 6600Nm Spinning Height 350mm
Spindle Speed 100-300r/min (stepless) Upper cylinder pressing force 600KN
Spinning products Al or Steel wheels rim/disc/spoke  stroke 500mm
Max. Machining Diameter 800mm Longitudinal cylinder feed force 400KN
Min. disc/spoke Diameter 300mm stroke 400mm
Max. disc/spoke materials parts Thickness Depth 30mm Lateral cylinder feed force 400KN
Min. Disc Thickness/Depth 8mm stroke 350mm
numerical control G codes (standard), CNC-optional N. Weight about 35000kg
Spinning Spork Diameter 16～24.5 inch Overall Dimension (about) 5700mm×2500mm×4000mm
