Double-location CNC Vertical Lathe
This machine is mainly composed of spindle box, column, longitudinal guide rail, fixture, hydraulic station, electric control cabinet, protective cover and power system, hydraulic system, program control system.
This machine is mainly composed of spindle box, column, longitudinal guide rail, fixture, hydraulic station, electric control cabinet, protective cover and power system, hydraulic system
Products
Products DETAILS
Double-location CNC Vertical Lathe

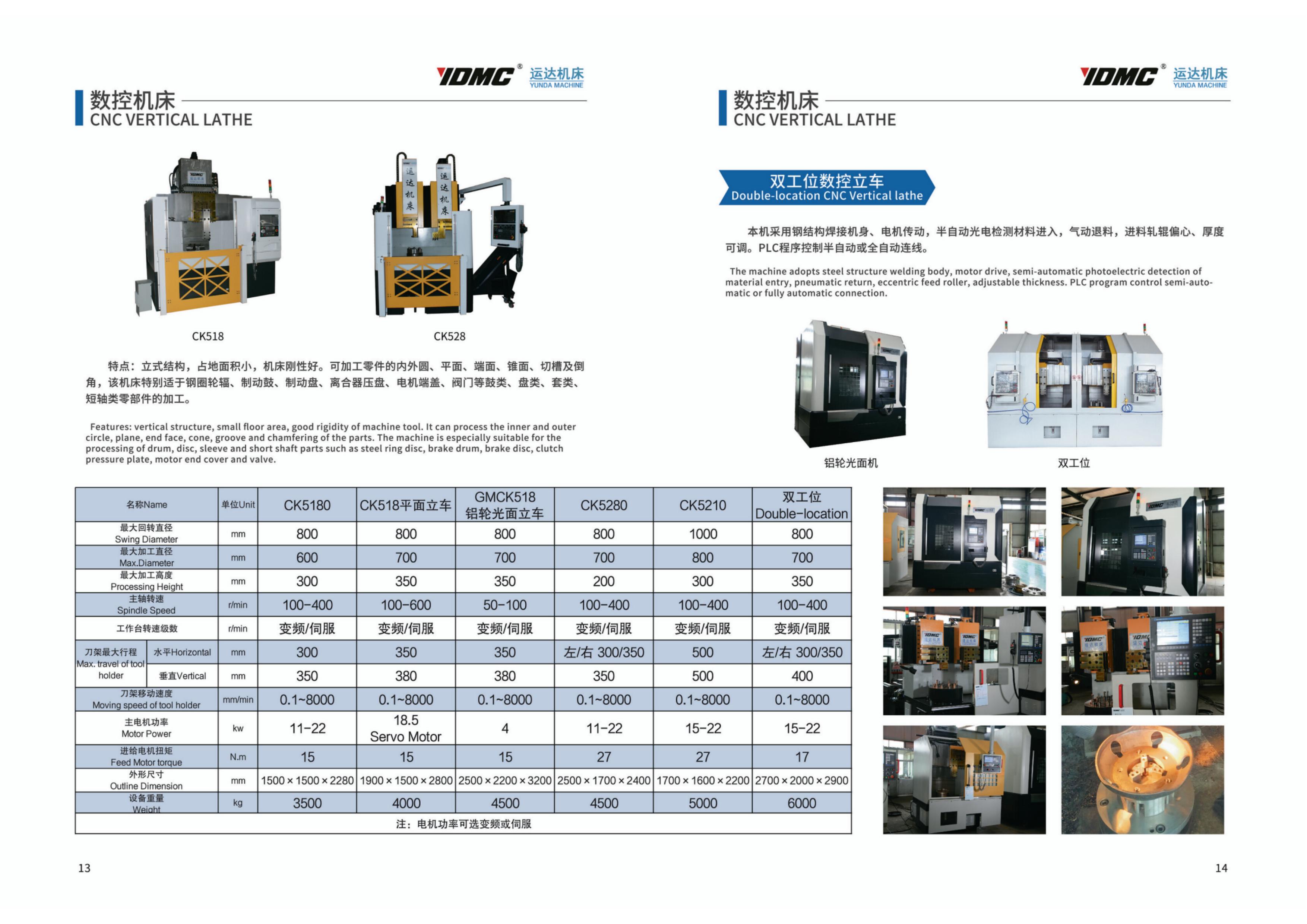

Our Double-location CNC Vertical Lathe is mainly used for turning machining, with wide column, single tool holder design, hydraulic chuck to tighten the workpiece, high degree of automation, providing a host basis for robot operation.
The clamp is a special hydraulic automatic clamp for the spoke, and the clamping force is stable and reliable.
The PLC system can independently set the operating parameters, do not interfere with each other, machining accuracy is high, and can be automatically completed in accordance with the set program: host start, fast forward, work, reset and other processing processes. And has the function of timing and counting.
名称Name | 单位Unit | CK5180 | CK518平面立车 |
GMCK518 铝轮光面立车 |
CK5280 | CK5210 |
双工位 Double-location |
|
最大回转直径 Swing Diameter |
mm | 800 | 800 | 800 | 800 | 1000 | 800 | |
最大加工直径 Max.Diameter |
mm | 700 | 700 | 700 | 700 | 800 | 700 | |
最大加工高度 Processing Height |
mm | 300 | 350 | 350 | 200 | 300 | 350 | |
主轴转速 Spindle Speed |
r/min | 100-400 | 100-600 | 50-100 | 100-400 | 100-400 | 100-400 | |
工作台转速级数 | r/min | 变频CONVERTER | 伺服SERVO | 变频CONVERTER | 变频CONVERTER | 变频CONVERTER | 变频CONVERTER | |
刀架最大行程 Max. travel of tool holder |
水平Horizontal | mm | 300 | 350 | 350 | 左/右 300/350 | 500 | 左/右 300/350 |
垂直Vertical | mm | 350 | 380 | 380 | 350 | 500 | 400 | |
刀架移动速度 Moving speed of tool holder |
mm/min | 0.1~8000 | 0.1~8000 | 0.1~8000 | 0.1~8000 | 0.1~8000 | 0.1~8000 | |
主电机功率 Motor Power |
kw | 11-22 |
18.5 Servo Motor |
4 | 11-22 | 15-22 | 15-22 | |
进给电机扭矩 Feed Motor torque |
N.m | 15 | 17 | 19 | 19 | 19 | 17 | |
外形尺寸 Outline Dimension |
mm | 1500×1500×2280 | 1900×1500×2800 | 2500×2200×3200 | 2500×1700×2400 | 1700×1600×2200 | 2700×2000×2900 | |
设备重量 Weight |
kg | 3800 | 4500 | 4500 | 4500 | 5000 | 6000 | |
注:电机功率可选变频或伺服SERVO MOTOR optional, Larger models CNC Vertical Lathes optional upon request. Standard China HNC808 CNC system, Siemens 808/828 optional |
