Aluminum wheels CNC Lathes YDMC
MGCK518
Aluminum wheels CNC Lathes YDMC, Models GMCK518
Products
Products DETAILS

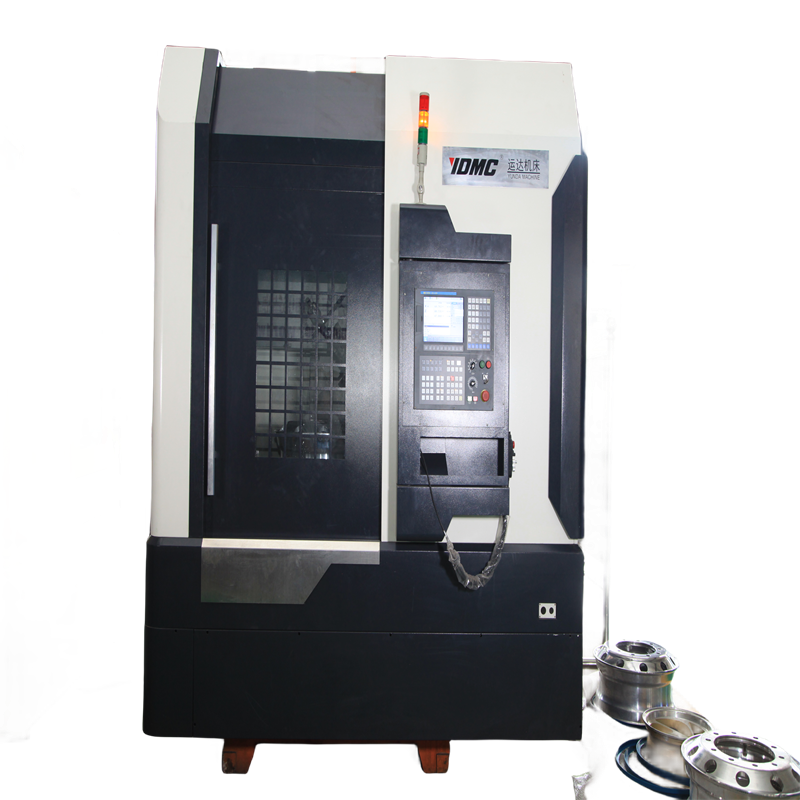

Aluminum wheels CNC Lathes YDMC
We have several models CNC Vertical Lathes, or PLC controlled, best suitables for wheels, wheel parts, machining due to YDMC models higher speed, higher quality precision.
Our machines videos avail upon request, or visit Youtube searching YDMC, or JHIMT directly.

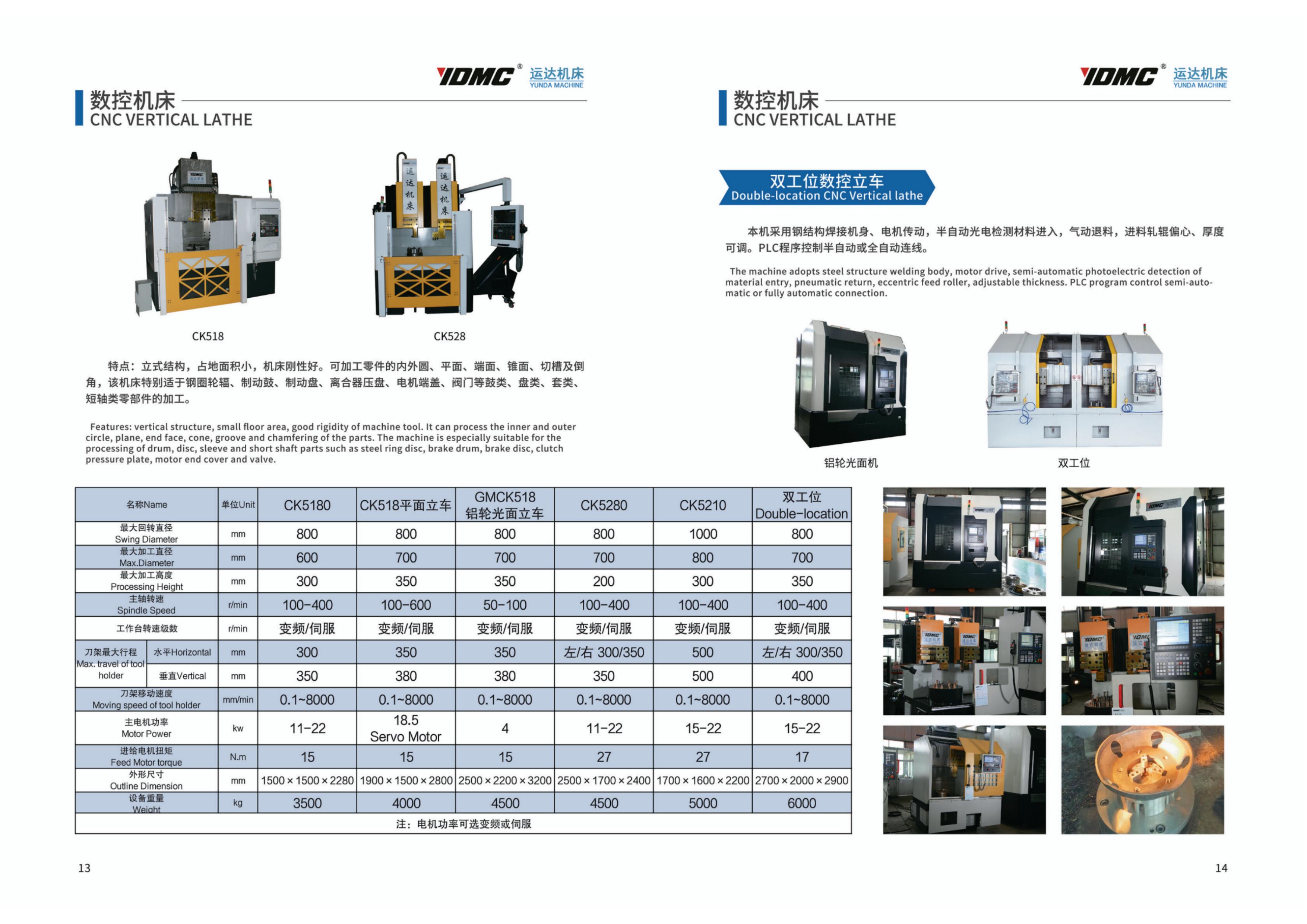

名称Name | 单位Unit | CK5180 | CK518平面立车 |
GMCK518 铝轮光面立车 |
CK5280 | CK5210 |

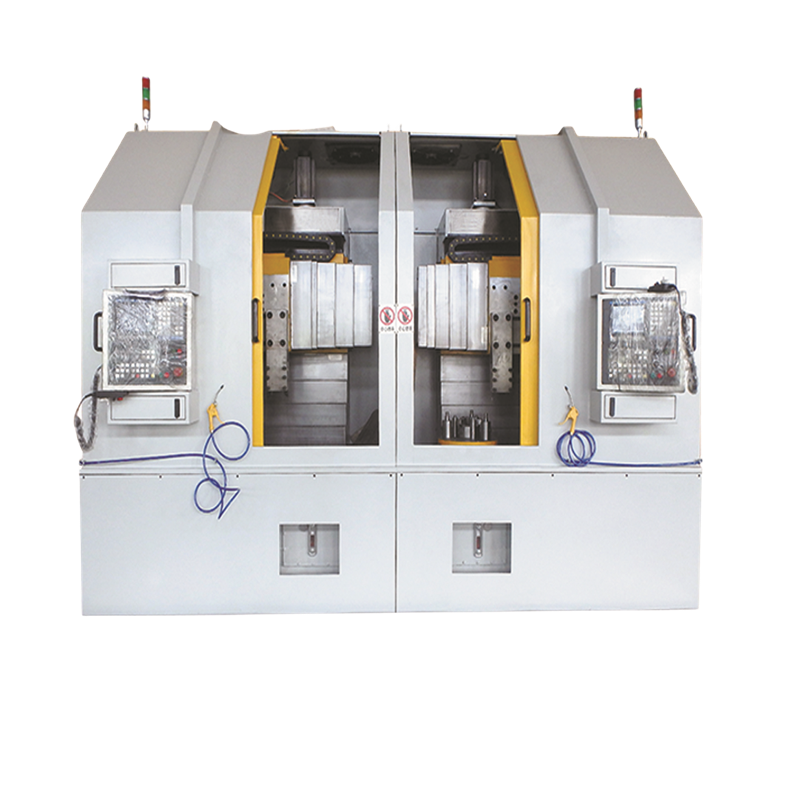

双工位 Double-location |
|
最大回转直径 Swing Diameter |
mm | 800 | 800 | 800 | 800 | 1000 | 800 | |
最大加工直径 Max.Diameter |
mm | 700 | 700 | 700 | 700 | 800 | 700 | |
最大加工高度 Processing Height |
mm | 300 | 350 | 350 | 200 | 300 | 350 | |
主轴转速 Spindle Speed |
r/min | 100-400 | 100-600 | 50-100 | 100-400 | 100-400 | 100-400 | |
工作台转速级数 | r/min | 变频CONVERTER | 伺服SERVO | 变频CONVERTER | 变频CONVERTER | 变频CONVERTER | 变频CONVERTER | |
刀架最大行程 Max. travel of tool holder |
水平Horizontal | mm | 300 | 350 | 350 | 左/右 300/350 | 500 | 左/右 300/350 |
垂直Vertical | mm | 350 | 380 | 380 | 350 | 500 | 400 | |
刀架移动速度 Moving speed of tool holder |
mm/min | 0.1~8000 | 0.1~8000 | 0.1~8000 | 0.1~8000 | 0.1~8000 | 0.1~8000 | |
主电机功率 Motor Power |
kw | 11-22 |
18.5 Servo Motor |
4 | 11-22 | 15-22 | 15-22 | |
进给电机扭矩 Feed Motor torque |
N.m | 15 | 17 | 19 | 19 | 19 | 17 | |
外形尺寸 Outline Dimension |
mm | 1500×1500×2280 | 1900×1500×2800 | 2500×2200×3200 | 2500×1700×2400 | 1700×1600×2200 | 2700×2000×2900 | |
设备重量 Weight |
kg | 3800 | 4500 | 4500 | 4500 | 5000 | 6000 | |
注:电机功率可选变频或伺服SERVO MOTOR optional, Larger models CNC Vertical Lathes optional upon request. Standard China HNC808 CNC system, Siemens 808/828 optional |
