Strong force spinning machines YDMC
YDMC wheels spinning machine, also called flow forming machines
Product Features:
Has two levels of spinning technologies of primary spin and precision spin, the spinning work pieces are stable and reliable.
Can be spinning varieties of different steel wheel spokes / discs; and also suitable for Aluminum Wheels spinning, by changing spinning moulds.
The press with advanced structure and high performance, reach the international advanced level.
Steel Wheel Strong Force Spinning Machine | ||||
Motor Power | 132KW | Upper cylinder | pressing force | 600KN |
Spindle Speed | 150-205r/min (stepless) | stroke | 450mm | |
Billet Materials | 235、380、490、590 | Longitudinal cylinder | feed force | 400KN |
Max. Spinning/machining Diameter | 700mm | |||
Min. Disc/spoke diameter | 350mm | stroke | 390mm | |
Max. Disc/spoke parts materials Thickness/Depth | 20mm | Lateral cylinder | feed force | 300KN |
Min. Disc/spoke Depth | 8mm | stroke | 260mm | |
Spinning Disc/spoke Diameter | 16~24.5 inch | N. Weight | about 25000kg | |
Spinning Height | 140mm | Outline Dimension (about) | 4100mm×1800mm×3600mm | |

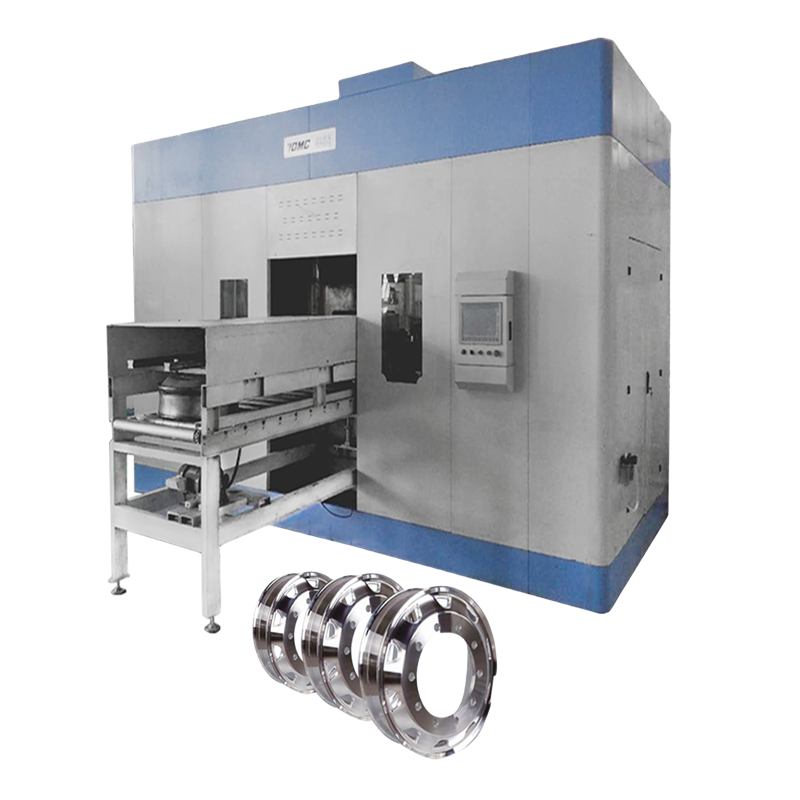

Aluminum Hub Strong Force Spinning Machine | ||||
Motor Power | 160KW | Spinning Height | 350mm | |
Spindle Speed | 150-205r/min (stepless) | Upper cylinder | pressing force | 600KN |
Billet disc/spoke Materials | 6061 | stroke | 500mm | |
Max. Spinning/machining Diameter | 700mm | Longitudinal cylinder | feed force | 400KN |
Min.Disc/spoke Diameter | 300mm | stroke | 450mm | |
Max. Disc/spoke Thickness Depth | 30mm | Lateral cylinder | feed force | 300KN |
Min. Disc/spoke Thickness Depth | 8mm | stroke | 300mm | |
Profile Adjustment | Servo | N. Weight | about 32000kg | |
Spinning Disc/Spoke Diameter | 16~24.5 inch | Overall Dimension (about) | 5200mm×2800mm×4000mm | |
NC (CNC) controlled Strong Force Spinning Machine | ||||
Spindle torque | 6600Nm | Spinning Height | 350mm | |
Spindle Speed | 100-300r/min (stepless) | Upper cylinder | pressing force | 600KN |
Spinning products | Al,Fe (steel) | stroke | 500mm | |
Max. Spinning/machining Diameter | 800mm | Longitudinal cylinder | feed force | 400KN |
Min. Disc/spoke Diameter | 300mm | stroke | 400mm | |
Max. Disc/spoke parts Thickness/Depth | 30mm | Lateral cylinder | feed force | 400KN |
Min. Disc/spoke Thickness/Depth | 8mm | stroke | 350mm | |
numerical control | G-code (or CNC) | N. Weight | about 35000kg | |
Spinning Disc/Spoke Diameter | 16~24.5 inch | Overall Dimension (about) | 5700mm×2500mm×4000mm |
